Label Sensors

Ultimate precision that just works

Starting from its original, first-ever clear label sensor, Lion Precision continues to offer the most precise label sensors on the market, utilizing capacitive or ultrasonic technology to eliminate sensitivity to color or contrast. We have also expanded into new applications as our customers have asked us to develop solutions for some of their most difficult process applications. We’ll work with you to determine the right solution for your application to help you reduce time to market and improve throughput.

Optics s-free sensing technology is at the heart of an LRD clear label sensor. They see labels regular “eyes” cannot see. This improved technology also makes them more precise and much faster than traditional label sensors – even on ordinary paper labels. More than 50,000 LRD label sensors are installed across the globe and testify to their accuracy and reliability.

Label Sensing – Capacitive label sensing measures thickness change between the label and backing material

Visual Inspection – High-speed visual inspection machines can move at a rate of 300 meters/ min. At these speeds, registration errors for traditional sensors can become an issue, even on paper labels.

Splice Detection – See-through solid or films. LRD’s will sense splices or hidden materials not measurable with photo eyes.

Adhesive Detection – Easily detect the presence or absence of adhesive. With a fast triggering speed and no need for visual inspection, get the job done quickly and reliably with an LRD.

Edge Tracking – Use LRD’s to track the edge of your web. The information provided from our sensor will allow you to set maximum travel tolerances for your web, preventing costly downtime for repair. Use LRD outputs to steer your web back on track when it wanders.

Our label sensors feature:

Multiple technologies Capacitive, ultrasonic, optical
High resolution label sensors at the fastest speed on the market
Simple user interface
Faster setups for long-term ROI
Ability to handle wide range of sizes and types of materials

Products

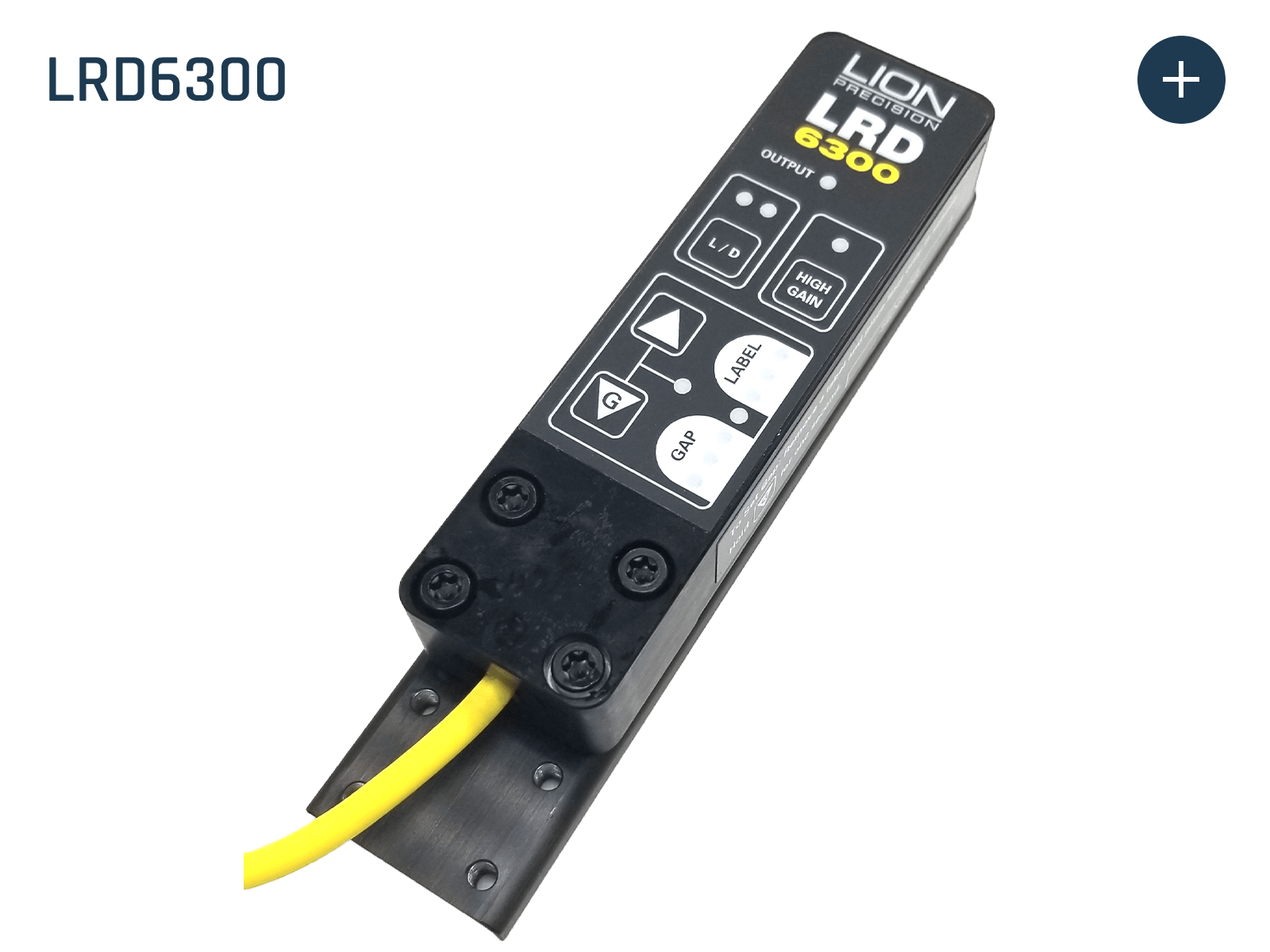

LRD6300 – Capacitive
Technology:  Capacitive
Response Time:  20 µs
Maximum Switching Speed:  10 kHz
Accuracy:  0.05 mm
Fork Width:  0.8 mm / .31"
Bar Graph Display:  Yes

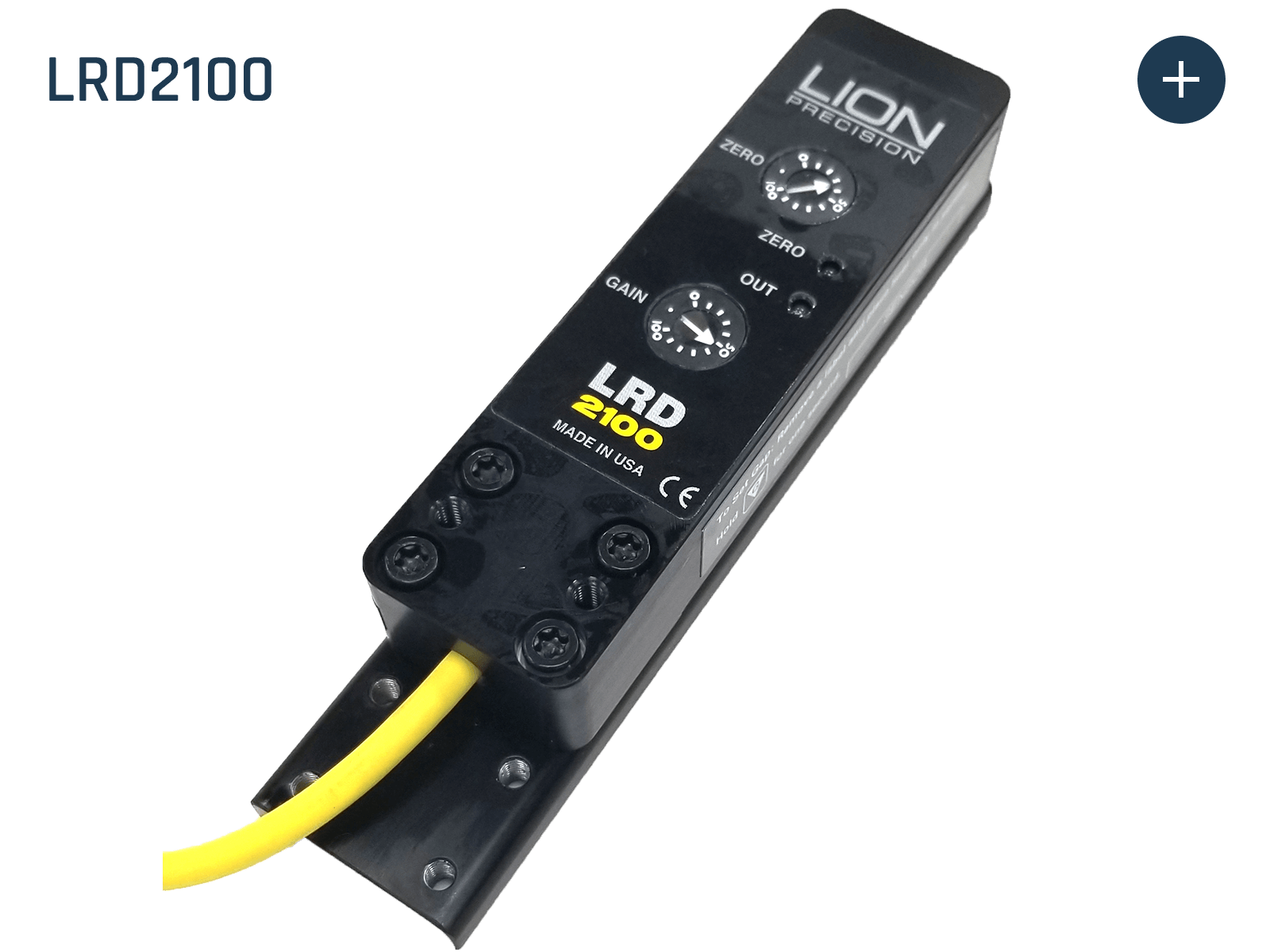

LRD2100 – Capacitive
Technology:  Capacitive
Response Time:  20 µs
Maximum Switching Speed:  10 kHz
Accuracy:  0.05 mm
Fork Width:  0.8mm / .31"
Bar Graph Display:  No

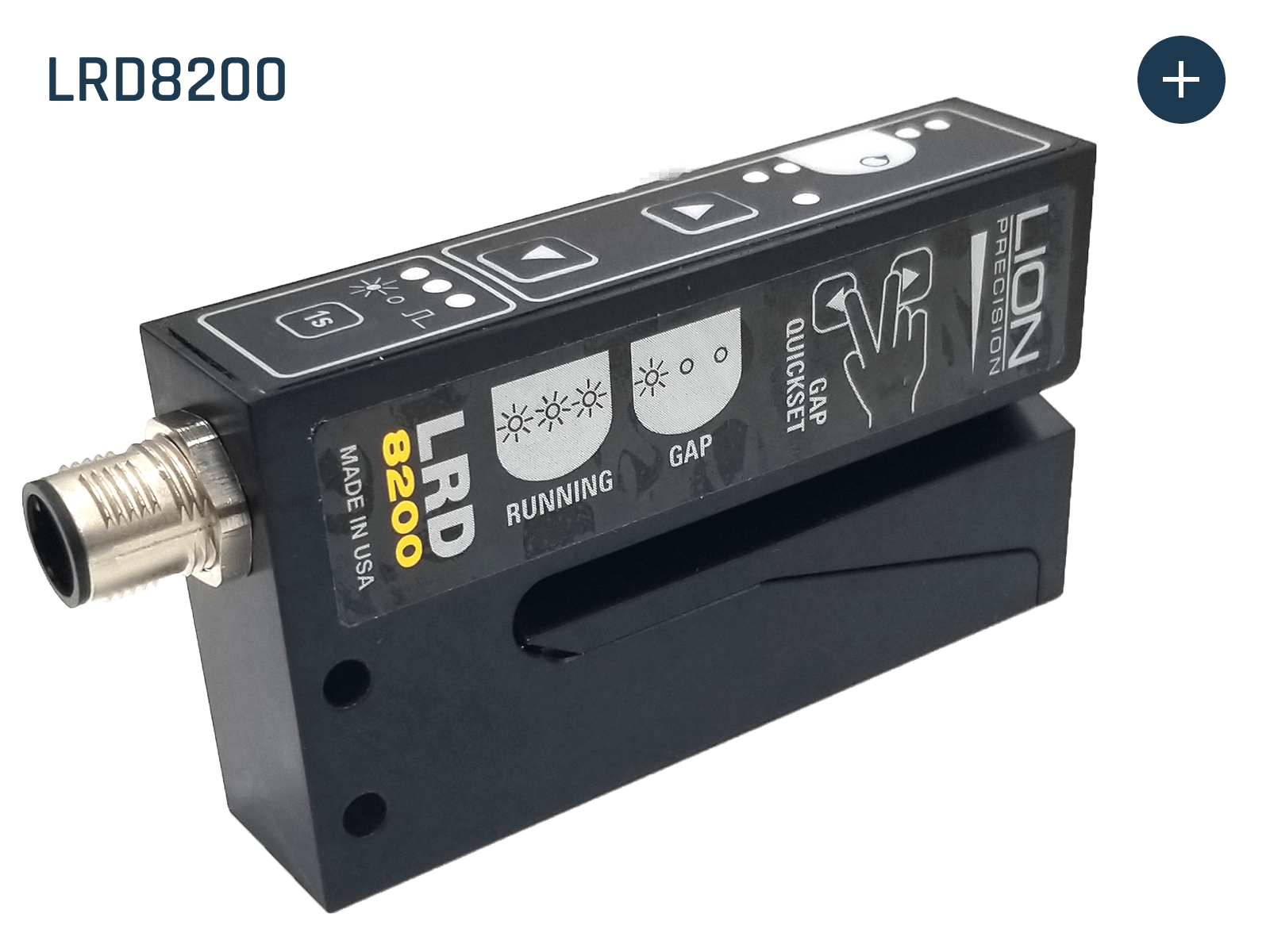

LRD8200 – Ultrasonic
Technology:  Ultrasonic
Response Time:  125 µs
Maximum Switching Speed:  1 kHz
Accuracy:  0.3 mm
Wide Fork:  3 mm / 0.12"
Bar Graph Display:  Yes

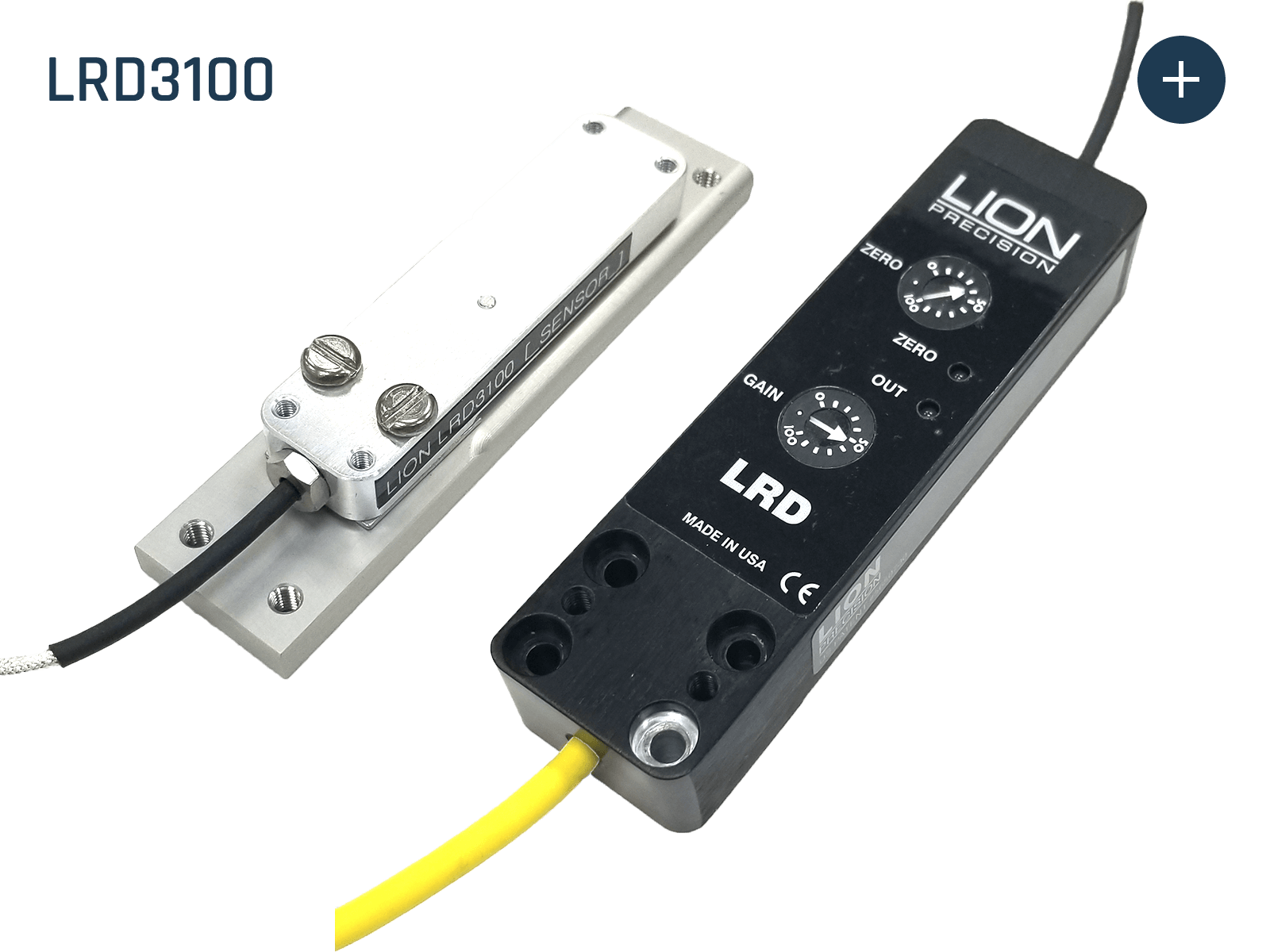

LRD3100 – Capacitive
Technology:  Capacitive
Response Time:  20 µs
Maximum Switching Speed:  10 kHz
Accuracy:  0.2 mm

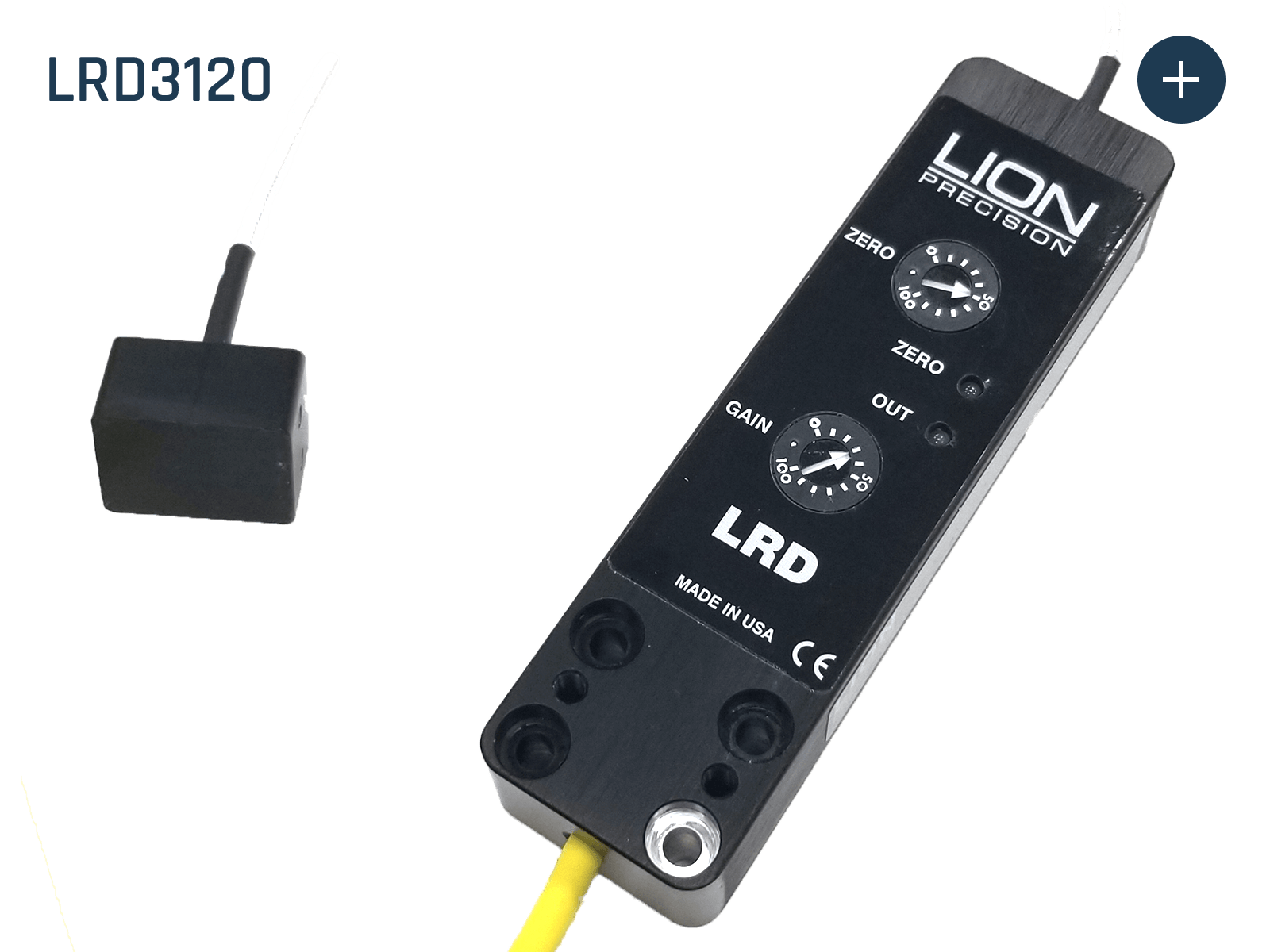

LRD3120 – Capacitive
Technology:  Capacitive
Response Time:  20 µs
Maximum Switching Speed:  10 kHz
Accuracy:  0.2 mm

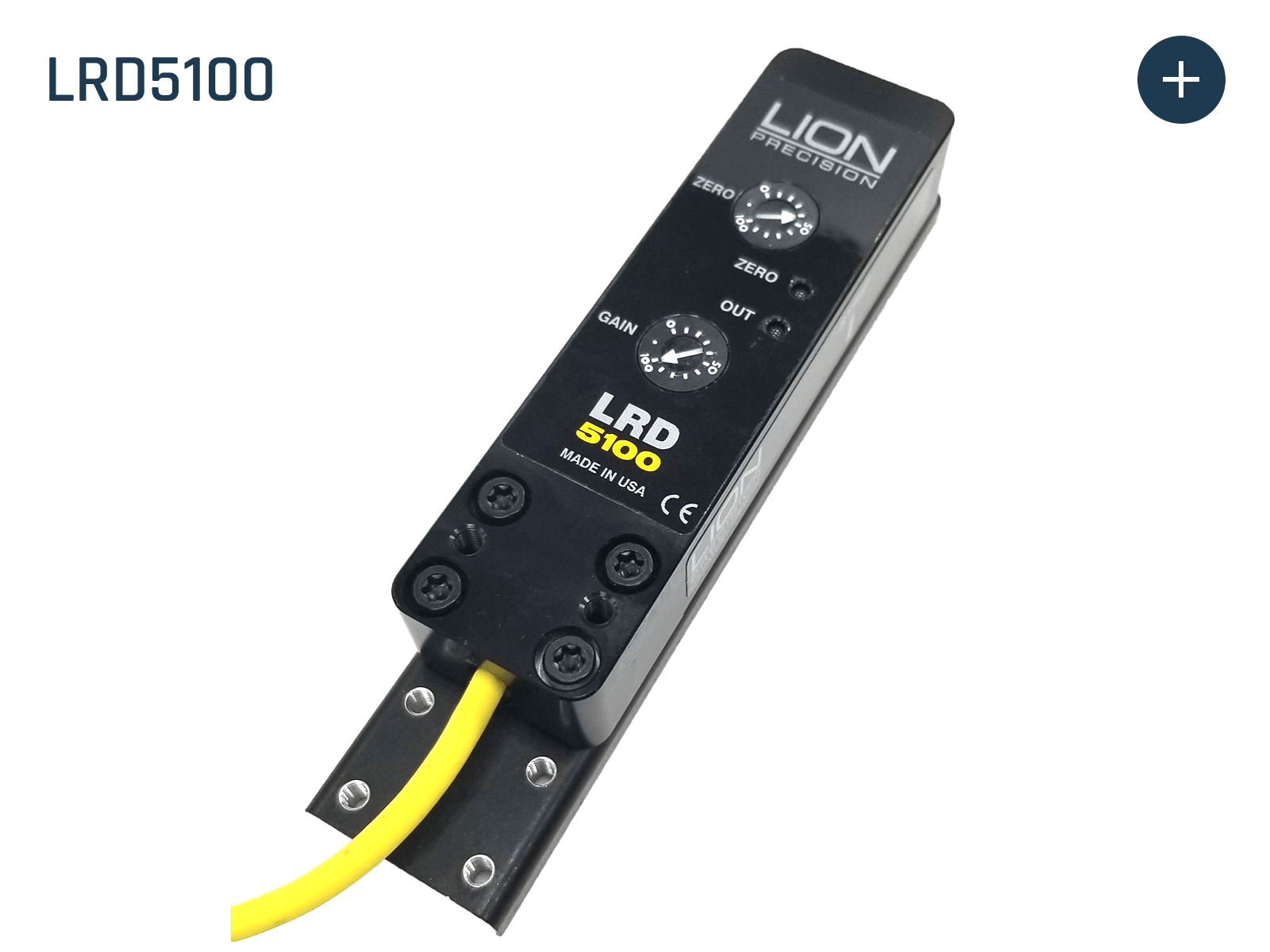

LRD5100 – Capacitive
Technology:  Capacitive
Response Time:  20 µs
Maximum Switching Speed:  10 kHz
Accuracy:  0.2 mm

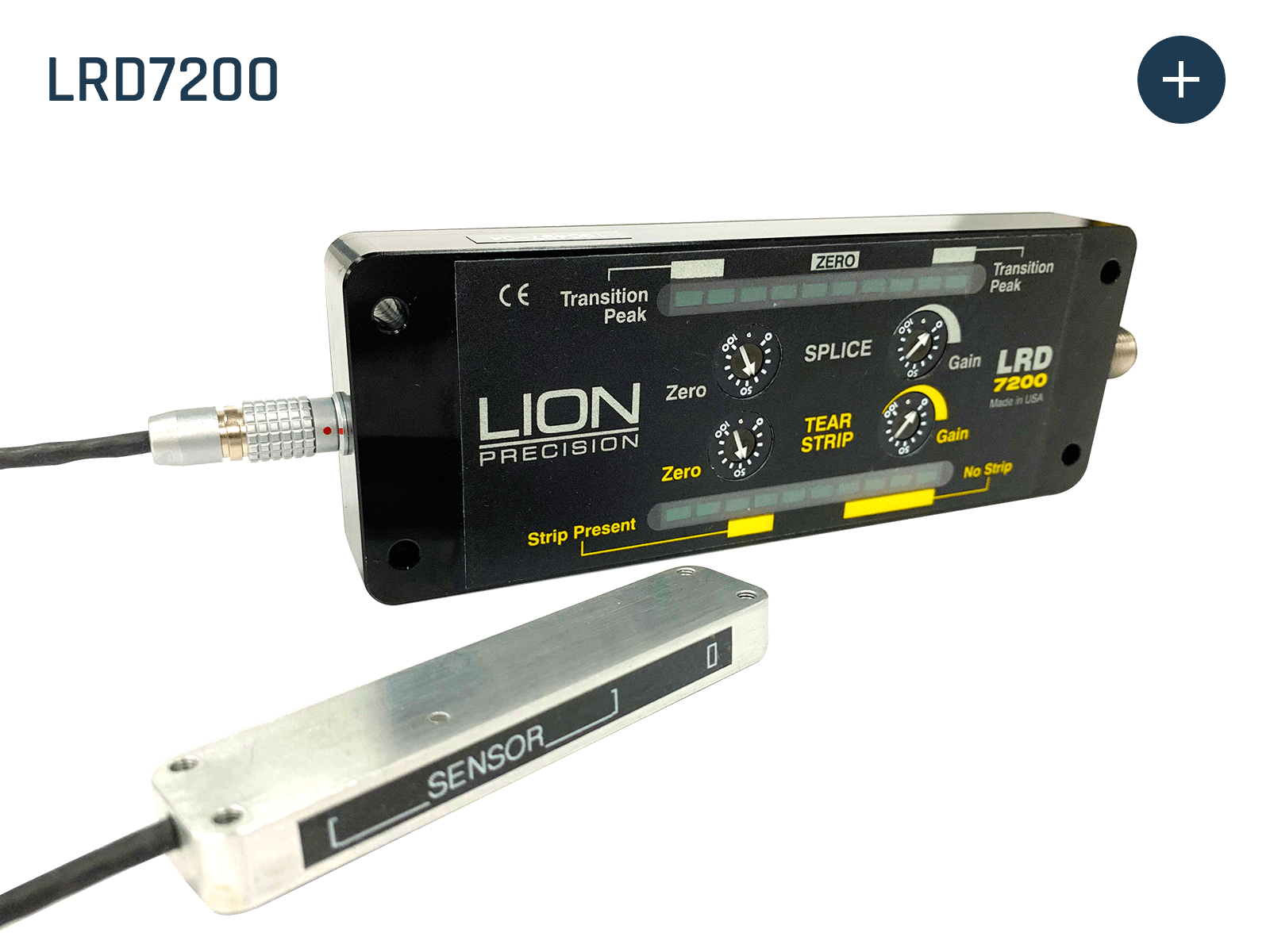

LRD7200 – Capacitive
Technology:  Capacitive
Response Time:  30 µs
Maximum Switching Speed:  -
Accuracy:  -

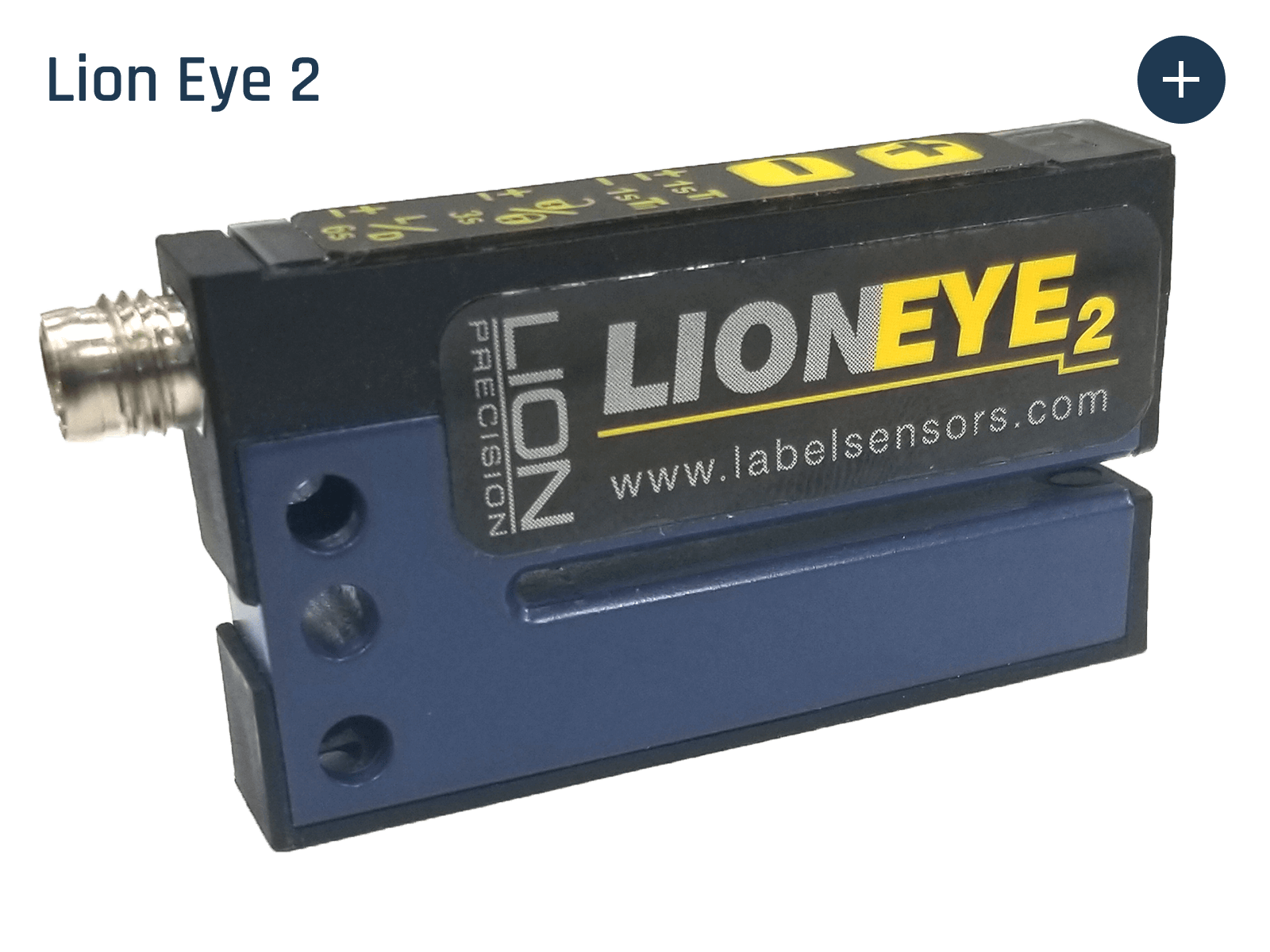

LionEye2 – Photoelectric
Technology:  Optical
Response Time:  50 µs
Maximum Switching Speed:  10 kHz
Accuracy:  0.2 mm
Fork Width:  2 mm / 0.12"
Bar Graph Display:  No
LionEye2 – Photoelectric Downloads:
​Contact us today for custom-designed products to deliver elite speed and precision across your application.
