Simple Eddy-Current Probe Modifications

Sometimes you just need to change a basic characteristic of the probe. Some basic and frequent customizations include:

  • Cable Length Changes
  • Extended Sensing Tips
  • Material Changes
  • Extended Temperature Ranges

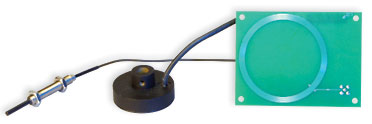

Fully Customized Eddy-Current Probes

You may need a complete custom design to fit your application. We’ve done this many times using our CUSTomer-Oriented Manufacturing (CUSTOM) system – a streamlined process that creates custom eddy-current sensors as quickly as possible. The table below shows some past designs. If one of these designs will work for you, charges for customization will be reduced or eliminated. Contact one of our Application Engineers or local representatives for help in getting the right sensor for your application.

Use Existing Custom Designs

You can save some or all of the time and cost of designing and testing a new custom probe if an existing custom probe design will work for you.

GET A CUSTOM SENSOR QUOTE


Existing Custom Eddy-Current Sensor Probes

Radial Cable Exit

Description


Dimensions

Measurement Ranges

Notes

U3 Button Style probe 0.5 mm 303 SST Body
U8, Radial cable exit 2 mm Some other coil sizes have also been made. Steel mounting barrel.
8mm Coin style probe 2 mm Plastic body.
U12 Coil 3.5 mm Plastic body. Other sizes also available.



Right Angle Sensing Coil

Description


Dimensions

Measurement Ranges

Notes

U8 Radial Coil,
M18 Body

2 mm Steel body

6mm Coil,
Radial orientation

2 mm Steel body
Q3 0.5 mm Originally design to scan thread quality in tapped holes. Can also be used for displacement in tight places.



Unique Designs

Description


Dimensions

Measurement Ranges

Notes

U38 Air-Cooled 12.5 mm Air-cooled probe with built-in thermocouples for sensing high-temperature targets like molten metal.
U8 Threaded Flush Mount,
Spanner Wrench
2 mm For flush mounting from measurement side. Larger diameter plastic housing prevents 8 mm coil from side loading.
U50 Offset cable 15 mm Available with spiral wrap cable armor. Plastic body.
U38, Thin Body 12.5 mm Plastic body.
U8 Short Body 2 mm U8 probe for tight spaces. Side- and back-loading must be accounted for.

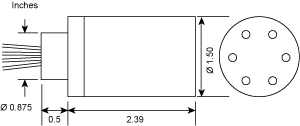

Multiple Coil,
Multiple Orientations

Axial: 2 mm
Radial: 1.25 mm
This probe has an 8 mm coil measuring axially and a 5 mm coil measuring radially. Plastic body.

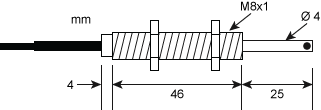

Can Probe
Extended Tip 1.25 mm
2 mm
Thread detection probes have extended tips and can be used for displacement measurements.
3mm Block Probe 0.5 mm Tiny probe for embedded component position monitoring. Plastic body.
Dual 8mm Coils 2 mm Specialized OEM design. Two independent sensors. Plastic body.





​Contact us today for custom-designed products to deliver elite speed and precision across your application.
